AIM Solo 2 DL version provides some extremely useful features:
- Features a 25 Hz, four constellation GPS receiver and a 100 Hz 6-axis inertial platform.
- Calculates, shows and records Lap Times/ Sector Times/ Position and vehicle speed
3D acceleration and gyro - ECU connection for receiving, showing and recording all the data directly from your ECU, both for CAN, RS232 and K-line connections
-Low voltage 150-400 V of the coil or from a digital square wave signal (8-50 V)
CAN expansions available:
Features a 25 Hz, four constellation GPS receiver and a 100 Hz 6-axis inertial platform.
Calculates, shows and records Lap times/ Sector times/ Position and vehicle speed
3D acceleration and gyro
ECU connection for receiving, showing and recording all the data directly from your ECU, both for CAN, RS232 and K-line connections
Low voltage 150-400 V of the coil or from a digital square wave signal (8-50 V)
CAN expansions available:
All these possibilities make of Solo 2 DL a true complete datalogger, that records your data in the huge 4 gigabytes internal memory for further analysis.

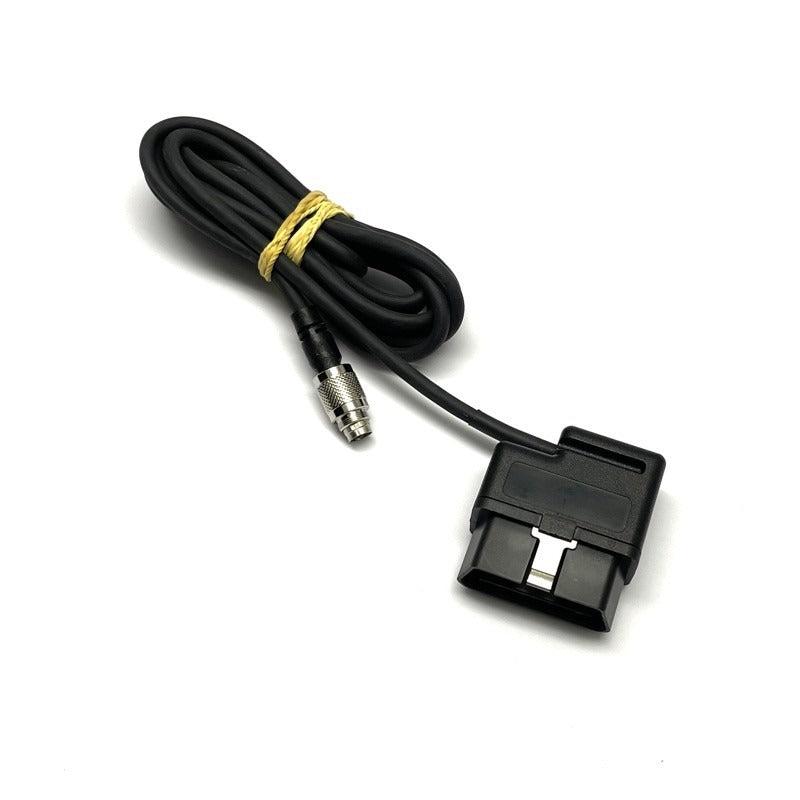

Includes: Solo 2 DL, power cable with AC adapter, mounting bracket with screws, user manual, software installation CD, AiM sticker. Connectable to the ECU via CAN/K-Line ODBII connectors 2 Meters.
